weedout: removing weak lines

It is sometimes useful to remove the weak lines which do not affect the spectra so much, keeping the line list short and clean. The weedout driver is for this task.

After w.read_linelist, the strong lines are stored in w.keep_list, while the weak lines are sotred in w.toss_list.

w = pymoog.weedout.weedout(5000, 2, 0, 10800, 10830, kappa_ratio=0.2)
w.prepare_file()
w.run_moog()
w.read_linelist(remove=False) # remove=False is used for w.compare(); see below.

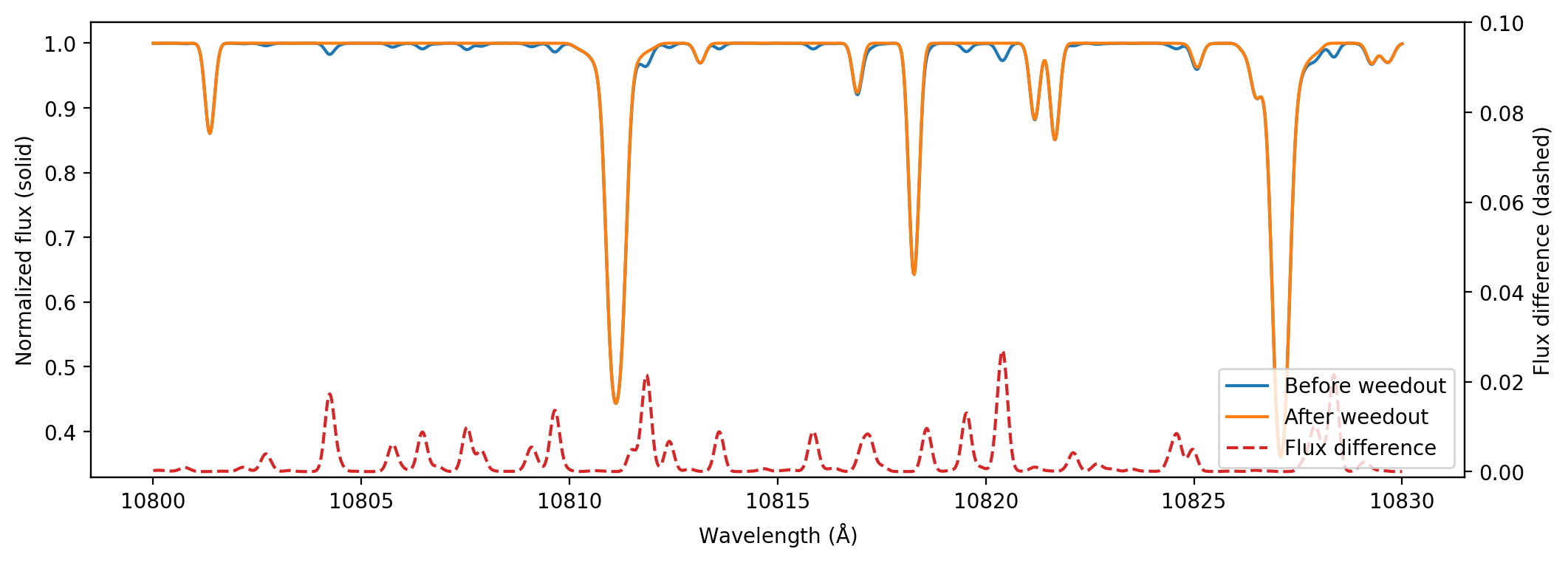

The difference between the line lists can be seen by:

w.compare(50000)

plt.figure(figsize=(12, 4), dpi=200)
ln1 = plt.plot(w.wav_all, w.flux_all, label='Before weedout')
ln2 = plt.plot(w.wav_keep, w.flux_keep, label='After weedout')

plt.xlabel('Wavelength ($\mathrm{\AA}$)')
plt.ylabel('Normalized flux (solid)')

plt.twinx()
ln3 = plt.plot(w.wav_keep, w.flux_keep - w.flux_all, ls='--', c='C3', label='Flux difference')
plt.ylim(top=0.1)
plt.ylabel('Flux difference (dashed)')

lns = ln1 + ln2 + ln3
labs = [l.get_label() for l in lns]
plt.legend(lns, labs, loc=4)

The lines with kappa_ratio (ratio of line to continuum opacity) smaller than the specified number is removed. A value of 0.01 can usually remove the weak lines but keep the synthetic spectra identical. Note that which lines are removed is subject to the stellar parameters.
